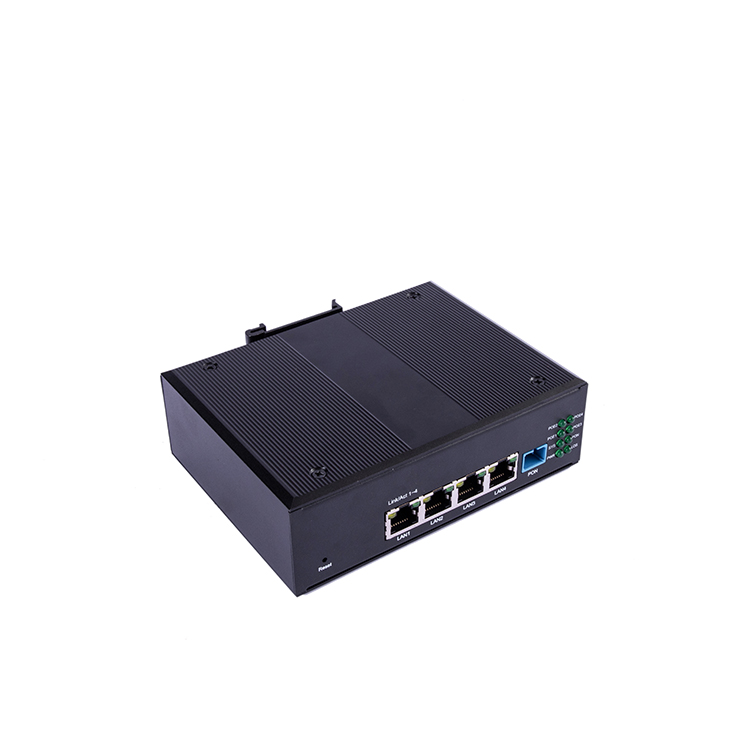

XPN224G-DP onu is a GPON ITU-T G.9844/988 standard and EPON IEEE 802.3AH standard China Telecom and China Unicom Connectivity standard, with good interoperability and operability, and has good compatibility with mainstream manufacturers Huawei, ZTE, Beacon OLT. XPN224G-DP adopts mature technology and open network standard development, quasi-industrial design, adapt to complex high and low temperature temperature environment, strong anti-electromagnetic interference, seismic shake, meet the requirements of different working environment. For the industrial Internet of things to provide efficient, reliable, fast solution, safe and stable reliable equipment, suitable for continuous operation of the industrial communications field. support IP40.
Application: military control, industrial automatic control, traffic control, video control, distributed data acquisition system, power acquisition and control system, intelligent community, safe city road toll system, etc.
Features: --------------------------------------
l Compliance with IEEE 802.3ah(EPON) & ITU-T
G.984.x(GPON) standard
l Support Layer 2 802.1Q VLAN, 802.1P QoS
l Support IGMP V2 snooping
l Support lightning protection of up to 4 kV
l Support port loop detection
l Support port rate limit
l Support hardware watchdog
l Support bi-directional FEC
l Support dynamic bandwidth allocation function
l Support LED indication
l Support remote upgrade by olt and web
l Support factory settings restore
l Support remote reset and reboot
l Support dying gasp outage alarm
l Support data encryption and decryption
l Support sending device alarm to OLT
l supports docking compatibility with various OLT
Hardware Specifications:---------------

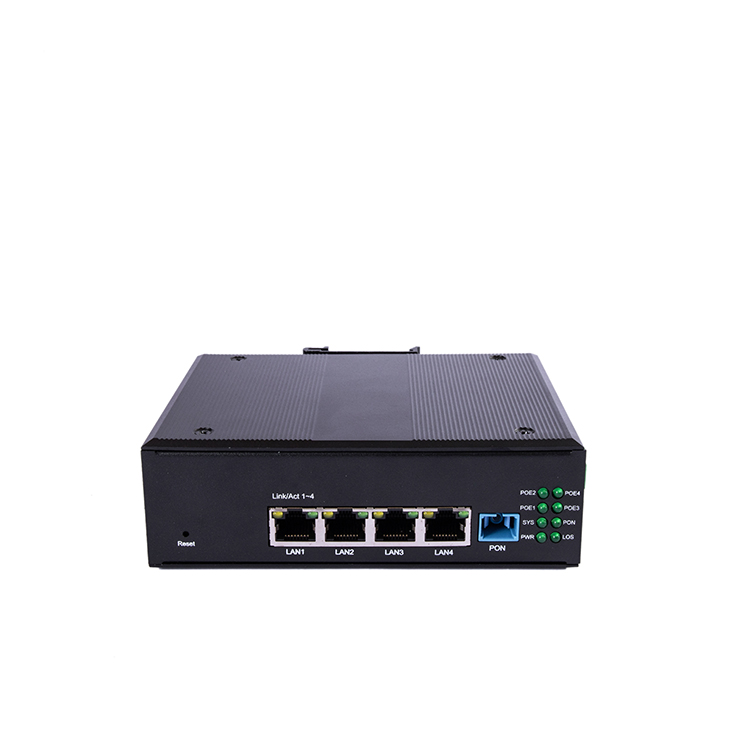

l interface: 1* G/EPON+4*GE(POE)
l Power adapter input: 100V-240V AC, 50Hz-60Hz
l Power Supply: DC 50-57V
l Indicator light: SYSTEM/POWER/PON/LOS/
POE1/ POE2 / POE3/ POE4
l Button: Power switch Button, Reset Button
l Power Consumption: < 6W
l Working temperature: -30℃～+75℃
l Environment humidity: 5% ~ 95%
(non-condensing)
l Dimension：137 mm(D)× 105mm(W)× 42mm(H)
(L×W×H)
l Net Weight：0.5Kg
