HG7124GAX
XPON HGU 4GE+VOIP+WIFI6(2.4G+5G) Product introduction
HG7124GAX is launched to be oriented to multi-service integration network as an optical network unit device, which belongs to XPON HGU terminal for FTTH/O scenario. It configures four 10/100/1000Mbps ports,WiFi6(2.4G+5G) port, one POTS port that providing with high-speed data services.
Features: --------------------------------------
l Compliant with IEEE 802.3ah(EPON) & ITU-TG.984.x(GPON) standard
l Compliance with IEEE802.11b/g/n/ax 2.4G &IEEE802.11a/n/ac/ax 5G WIFI standard
l Support IPV4 & IPV6 Management and transmission
l Support TR-069 remote configuration and maintenance
l Support Layer 3 gateway with hardware NAT
l Support Multiple WAN with Route/Bridge mode
l Support Layer 2 802.1Q VLAN, 802.1P QoS,ACL etc
l Support IGMP V2 and MLD proxy/ snooping
l Support DDNS, ALG, DMZ, Firewall and UPNP service
l Support POTS interface for VOIP service
l Support bi-directional FEC
Highlights: --------------------------------------
l Support docking compatibility with OLT of various manufacturers
l Support automatically adapt to the EPON or GPON mode used by the peer OLT
l Support 2.4G and 5G Hz dual band WIFI
l Support multiple WIFI SSID
l Support EasyMesh WIFI function
l Support WIFI WPS function
l Support multiple wan configuration
l Support WAN PPPoE/DHCP/Static IP/Bridge mode.
l Support fast transmission of hardware NAT
l Support OFDMA, MU-MIMO,1024-QAM
Hardware Specifications:---------------

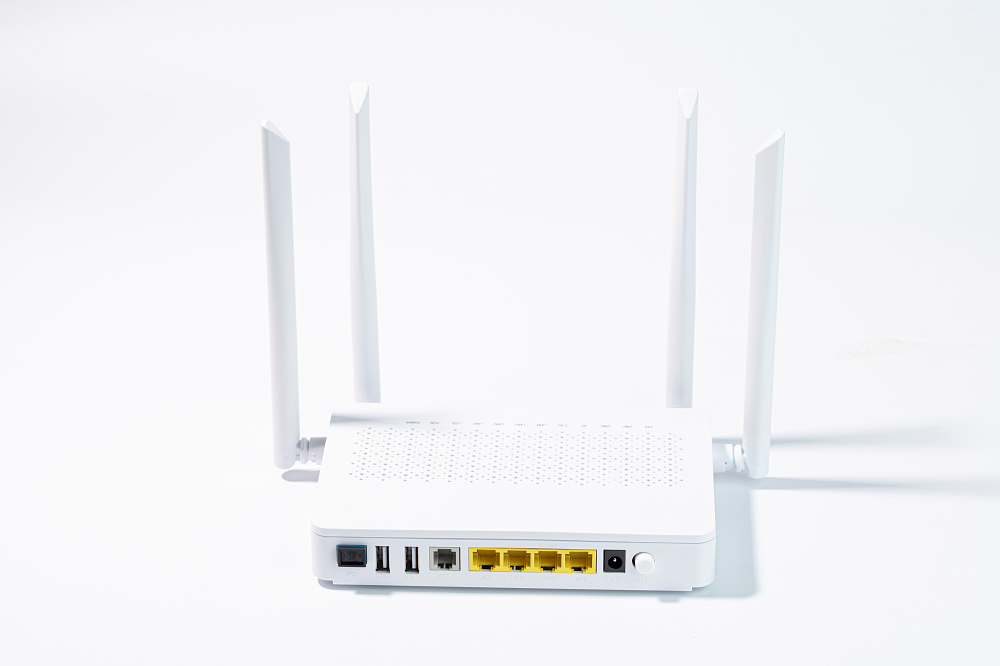

l interface: 1* G/EPON+4*GE+2.4G/5GWLAN+1*FXS
l Power adapter input: 100V-240V AC, 50Hz-60Hz
l Power Supply: DC 12V/1.5A
l Indicator light: POWER/PON/LOS/LAN1/ LAN2/LAN3/LAN4/FXS/2.4G/5G
l Button: Power switch Button, Reset Button,WLAN Button, WPS Button
l Power Consumption: <18W
l Working temperature: -20℃～+50℃
l Environment humidity: 5% ~ 95%
(non-condensing)
l Dimension：180mm x 122mm x 28mm
(L×W×H Without antenna)
l Net Weight：0.25Kg
PON Interface: ---------------------------------
l Interface Type: SC/UPC, CLASS B+
l Transmission distance: 0～20km
l Working wavelength: Up 1310nm；
Down 1490nm
l RX Optical power sensitivity: -27dBm
l Transmission rate:
GPON: Up 1.244Gbps；Down 2.488Gbps
EPON: Up 1.244Gbps；Down 1.244Gbps
Ethernet Interface : ----------------------
l Interface type：4* RJ45
l Interface parameters：10/100/1000BASE-T
Wireless: ------------------------------------

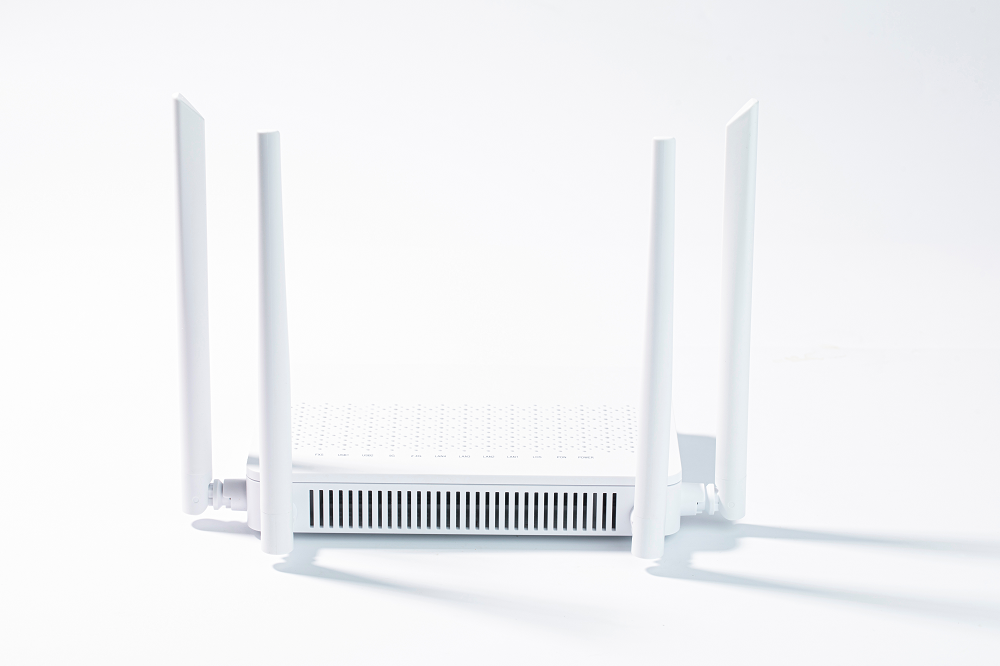

l Interface type：External 2*2T2R External antenna
l Antenna gain: 5dBi
l Interface maximum rate:
2.4G WLAN： 573.5Mbps
5G WLAN： 1201Mbps
l Interface working mode:
2.4G WLAN：802.11 b/g/n/ax
5G WLAN：802.11 a/n/ac/ax
POTS Interface: ---------------------------
l Interface type: FXS , RJ11 connector
l Support G.711 codec
